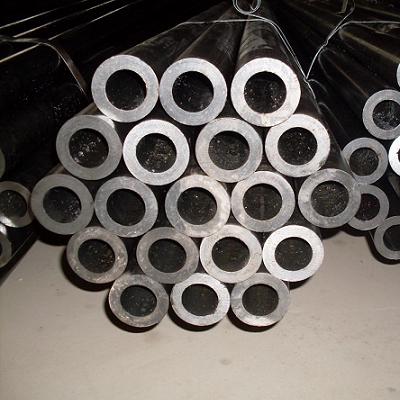

DIN 17175 Pipe

DIN 17175

Sizes (O.D. x W.T): from 13.7mm -- 219.1mm x 1.5mm to 28mm
Stanard: DIN17175
Steel Grade: ST35.8,ST45.8,15Mo3,13CrMo44
Surface: oiled or black painted to prevent rust
Marking: as per customer's requirement



DIN 17175 Boiler tube Mechanical Property &Chemical Components
Material	Tensilestrength(MPa)	Yieldstrength(MPa)	Elongation(%)	C	Si	Mn	P、S	Cr	Mo
St35.8	360～480	≥235	≥25	≤0.17	0.10～0.35	0.40～0.80	≤0.030	/	/
St45.8	410～530	≥255	≥21	≤0.21	0.10～0.35	0.40～1.20	≤0.030	/	/
15Mo3	450～600	≥270	≥20	0.12～0.20	0.10～0.35	0.40～0.80	≤0.030	/	0.25～0.35
13CrMo44	440～590	≥290	≥20	0.10～0.18	0.10～0.35	0.40～0.70	≤0.030	0.70～1.10	0.45～0.65
10CrMo910	450～600	≥280	≥18	0.08～0.15	≤0.50	0.40～0.70	≤0.030	2.00～2.50	0.90～1.20







Seamless Steel Pipe, Din 17175 Steel Pipe, DIN 17175 pipe
